Specification Portable Sand Blasting Machine (SB P7 500 & 500R)
| Abrasive Tank Capacity (Metallic) |
500 kg |
| Abrasive Tank Capacity (Sand) |
230 Kg |
| Volume |
142 Ltr |
| Std. Blasting Hose Length |
7.5 Mtr |
| Blasting Hose I.D. |
25 mm |
| Sandblasting Nozzle Orifice |
6-8 mm |

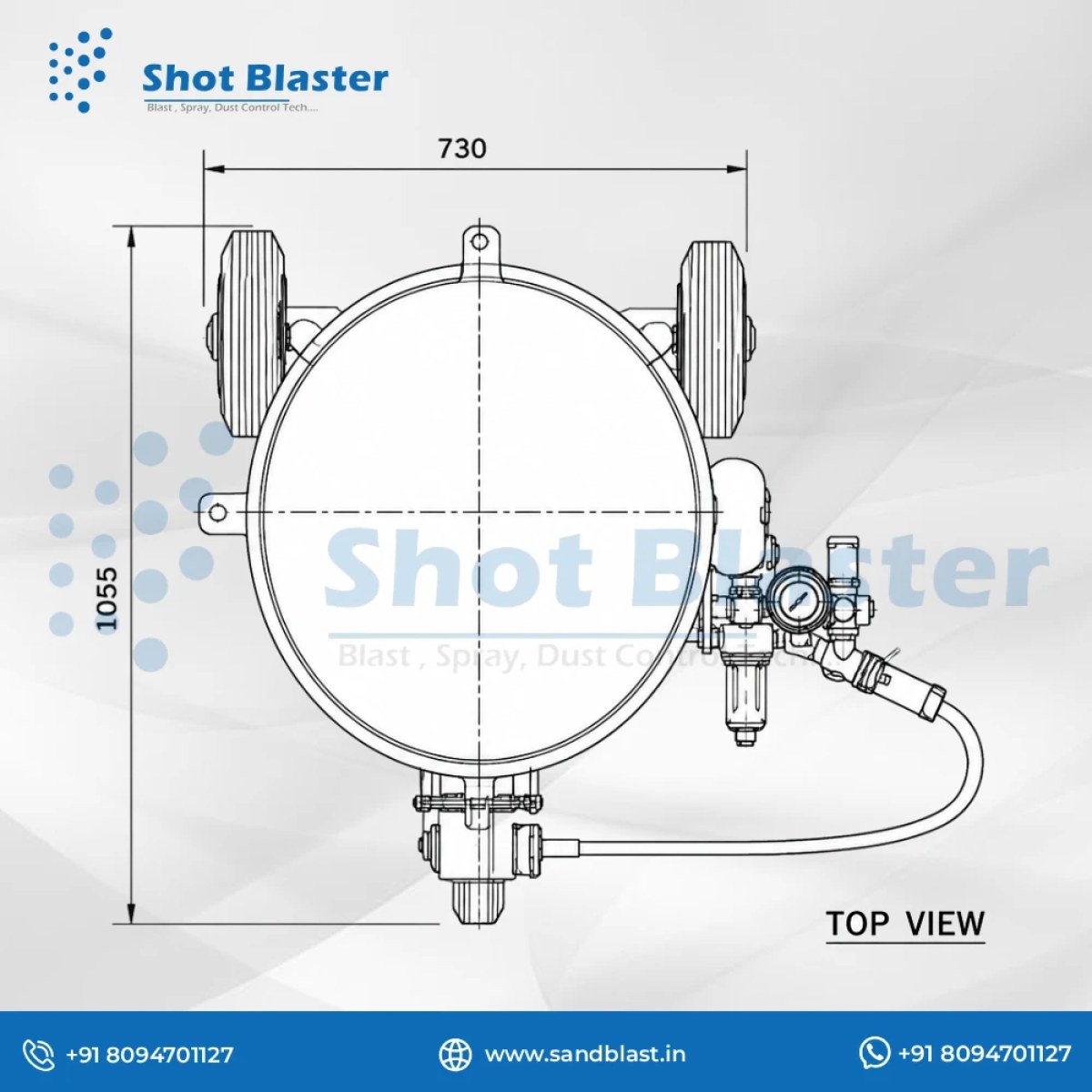

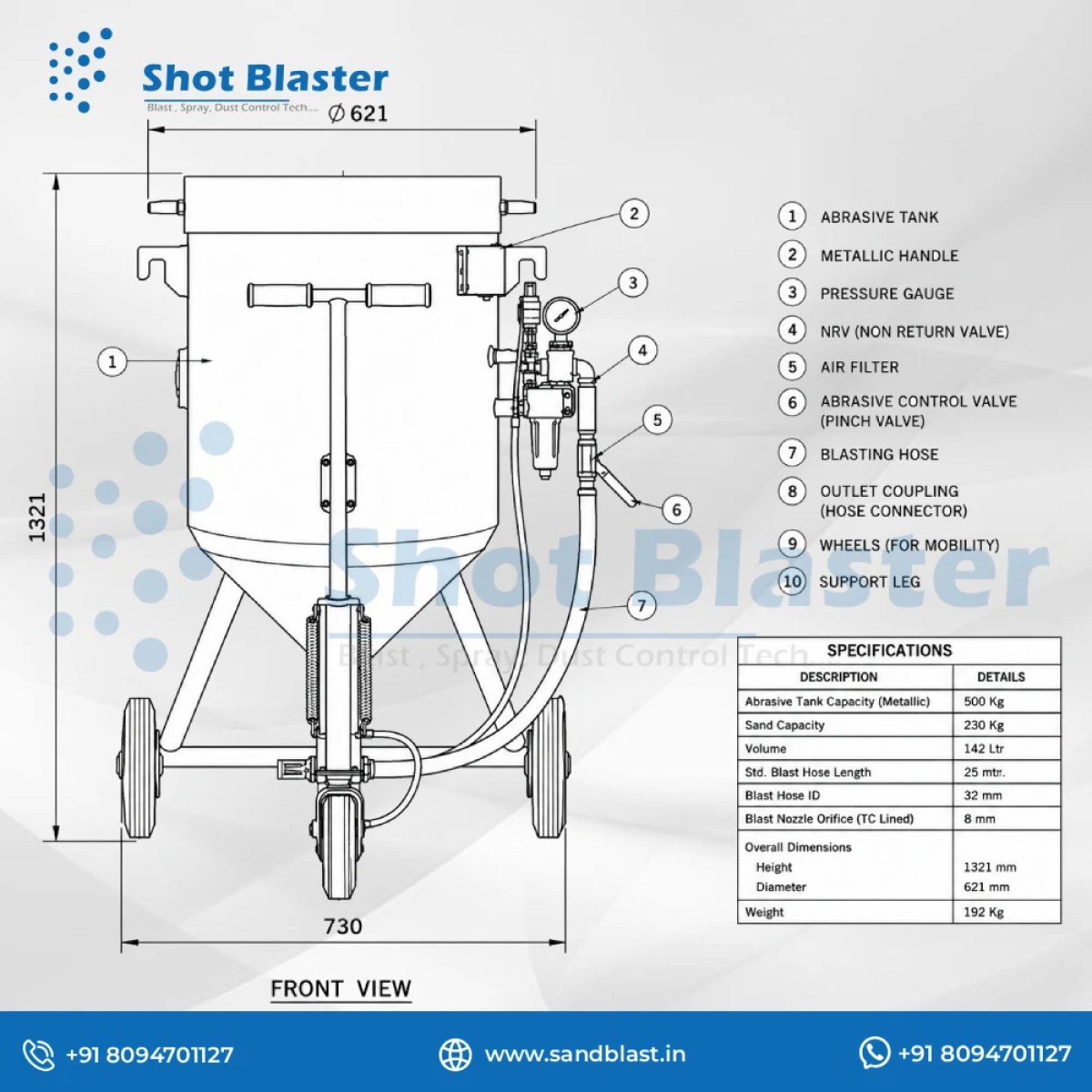

Dimension Portable Sandblasting Machine (SB P7 500 & 500R)
| Height |
1321 mm |
| Diameter |
621 mm |
| Weight |
192 Kg |

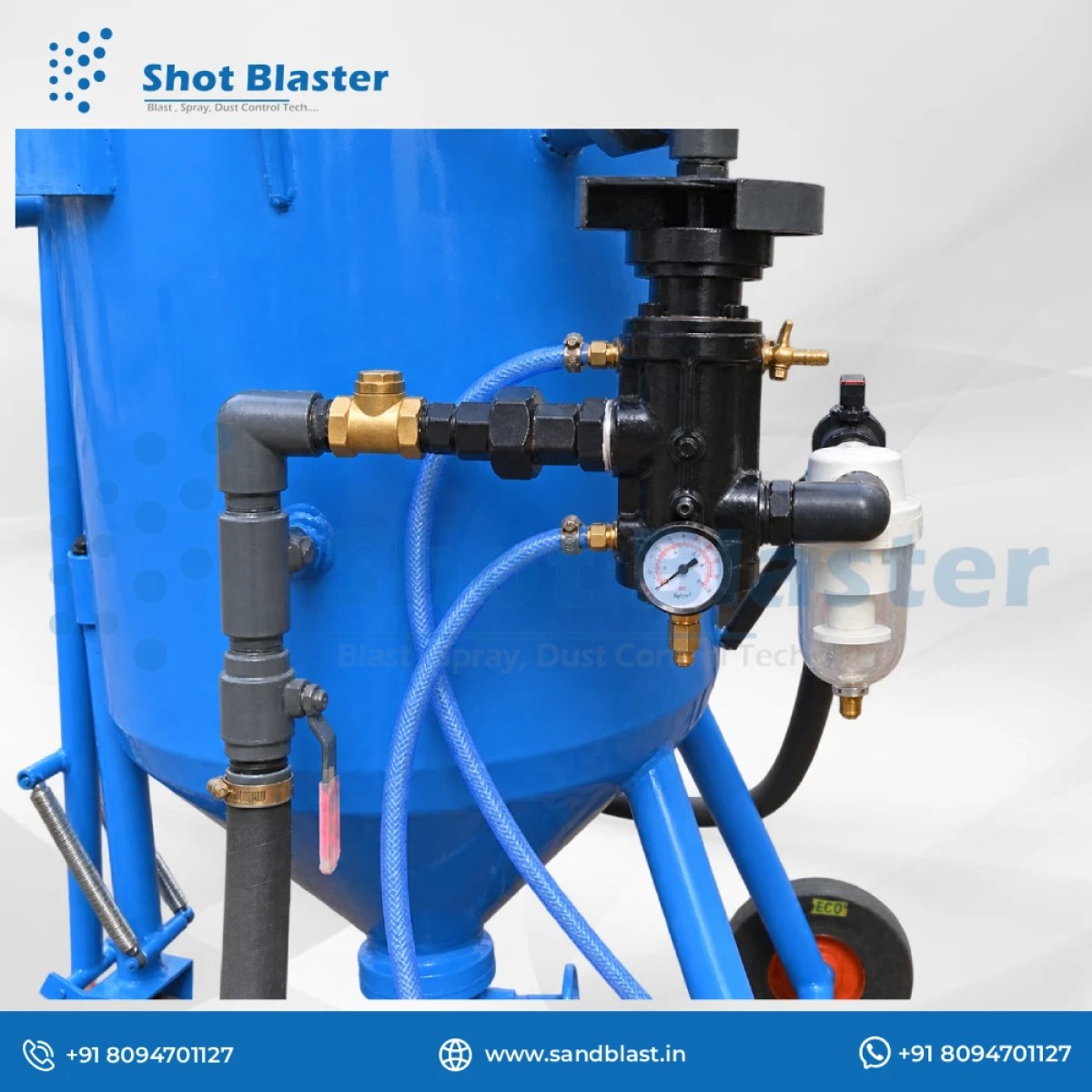

| Air Filter & Pressure Gauge fitted |
1 |
| Automatic Exhaust Valve fitted |
1 |

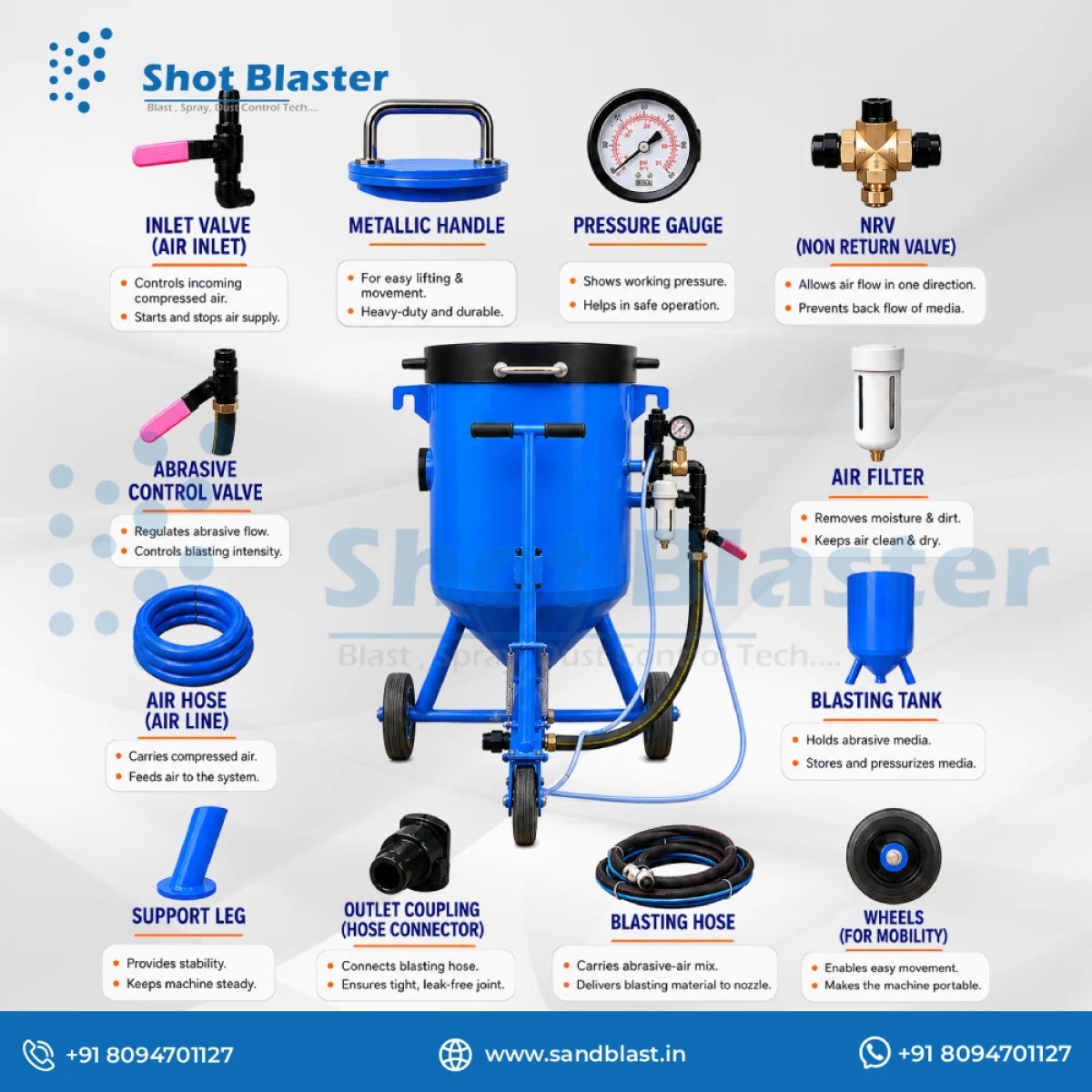

| Abrasive Control through Pinch Valve fitted |
1 |
| Approx. Cleaning Rate [Only for reference] |
9-12 Sq Mtr/Hr |
| Compressed air required at 80 psi. |
113 CFM |
| Recommended Abrasive Size |
16 to 80 Mesh |

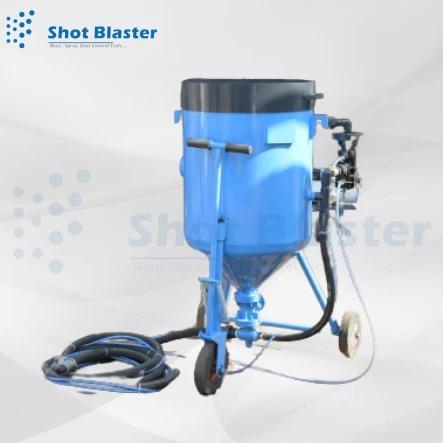

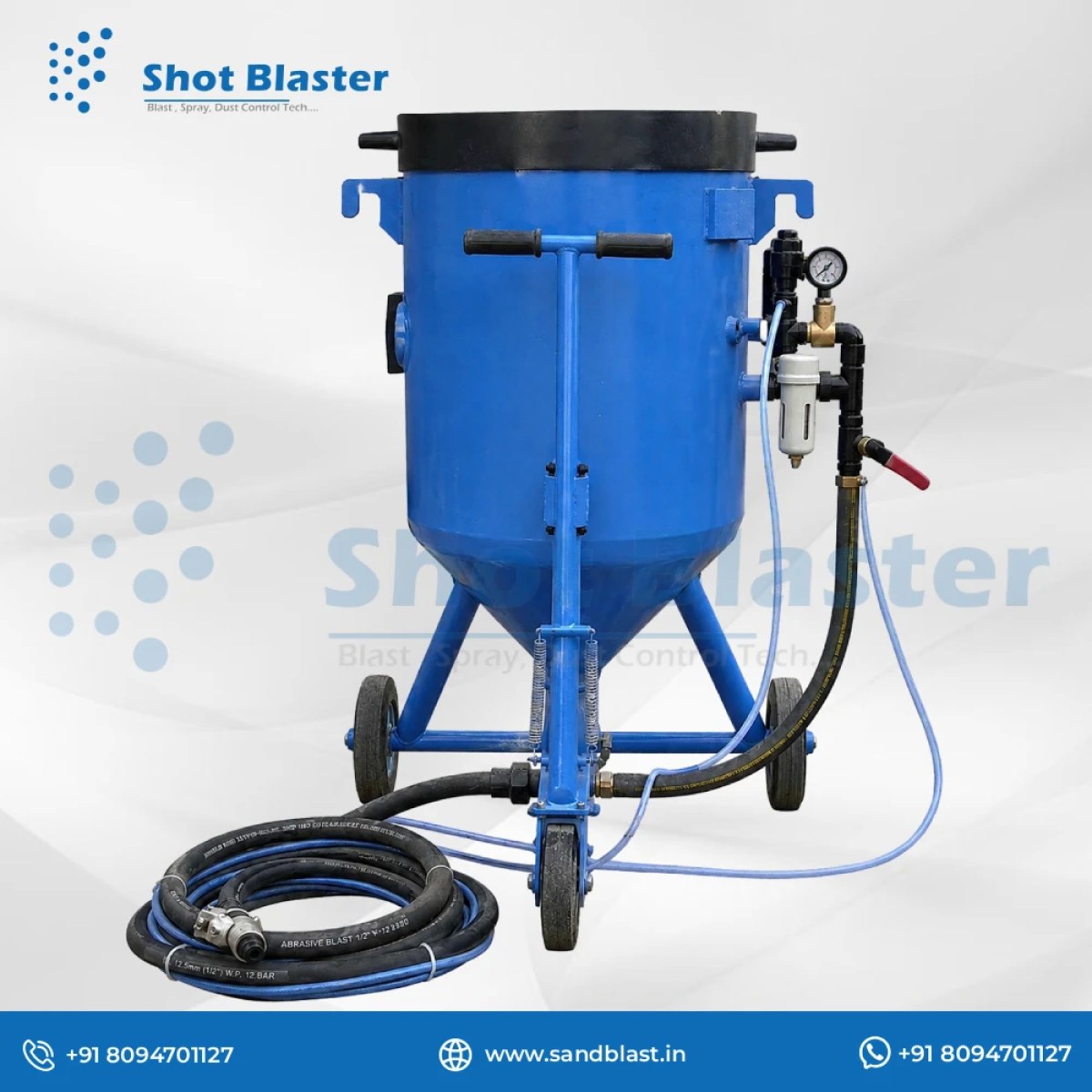

portable sand blasting machine (SB P7 500 & 500R) or mobile sand blasting equipment has medium-sized blasting pot (500kg) thus also known as portable sandblasters (SB P7 500 & 500) & portable sandblasting units. It is having a moderate cleaning rate. sand blasters (SB P7 500 & 500) machine has two modes, One is On / Off by Remote Control & Deadman Handle and the other is on / off manually. When Operators want to off the machine then it leaves the deadman handle, then depressurizes the portable sandblaster (SB P7 500 & 500). If the operator wants to on mobile sandblasting equipment then he presses the deadman lever then Pressurization occurs into the sand blasting machine units. Leaver is located near the sand blasting nozzle so it can easily handle it. It is also known as blasting pot, sandblaster hopper as it can simply move from one site to another. Portable Sand Blasting Machine (SB P7 500 & 500R) medium capacity is low cost at maximum working time.
Portable Sand Blasting Machine in India
Portable Sand Blasting Machine in India for sale. SandBlast is the Leading Manufacturers, Supplier & Exporter of Portable Sand Blasting Machine (p7 500 & 500R), Sand Blasting Machine, shot blasting machine, grit blasting machine, thermal spray gun, thermal spray coating equipment, arc spray gun, flame spray gun, metalizing gun, abrasive media in Jodhpur, Rajasthan, India at a low price for sale. We provide all cabinet type Sand Blasting Machine & shot blasting machine as per customer requirement in a different size.
