Electric Arc Spray Gun Manufacturers

Are you looking for Electric Arc Spray Gun?

Well do you know among the primary thermal spray processes to be invented, discharge wire spray holds its own because of the favored process for several coating applications. Using only the facility of electricity, discharge wire spray requires no process gases aside from atomizing air. As a result, coatings are characteristically clean and sometimes more machinable than those produced using other thermal spray processes. With a rock bottom number of any thermal spray gun process input parameters, discharge wire systems are simple to work and maintain yet produce reliable and robust coating results.

The heat of the arc melts the electrode wire faster and deposits particles having higher total heat and greater fluidity than the flame spraying process. The deposition rates are from 3 to five times greater, and therefore the bond strength is bigger 5000-7000 PSI. There is coalescence additionally to the mechanical bond. The deposit is denser, and coating strength is more significant than when using flame spraying.

Dry compressed gas is employed for atomizing and propelling the molten metal. A pressure of 80 psi and 30 to 80 cu ft/min (0.85 to 2.27 mm/min) is employed. Almost any metal which will be drawn into a wire is often sprayed. Following are arc sprayed metals: aluminum, babbitt, brass, bronze, copper, molybdenum, Monel, nickel, chrome steel, steel, tin, and zinc.

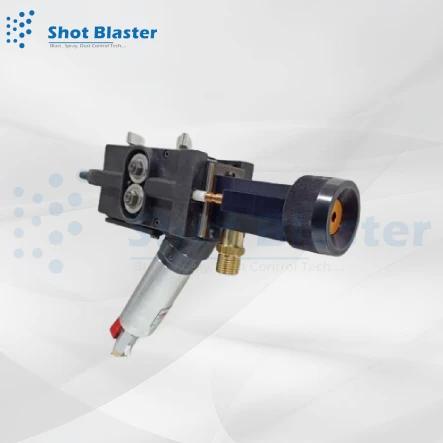

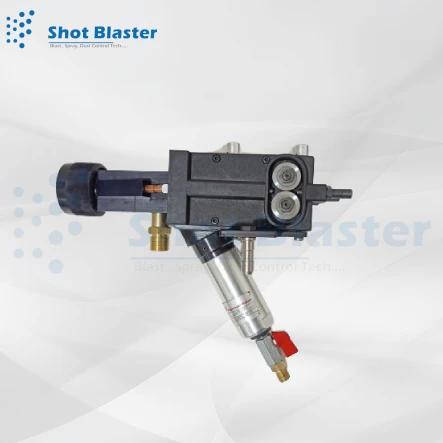

We also have the best quality Arc Spray Gun available with us at the most affordable prices.

Features

  • Excellent portability for on-site coatings
  • It doesn't require water or any other process gasses except compressed air
  • High spray rates

Applications of Electric Arc Spray Gun

  • Bridge decks
  • Transport pipes
  • Capacitors
  • Welded tube seams
  • Piston rings
  • Varistors
  • Boiler walls
  • Other large infrastructures

Specifications

  • Wire Materials Compatibility All solid anti-corrosion (Zinc wire, Zinc Aluminium wire, and Al/Mg) electric arc wires available from us in appropriate wire sizes.
  • Wire diameters 2.3 mm, 2.5 mm
  • Spray rates (2.5 mm wire)
Zn 35 kg/h
85Zn 15Al 31 kg/h
Al 10.5 kg/h
95Al 5Mg 9.8 kg/h

We also have different kinds of thermal Spray Guns, Abrasives, Shot Blasting Machines, Sand blasting machines available with us.
