Thermal Spray Coating

Thermal Spray Coating is an overall cycle wherein metallic, clay, cermet, and some polymeric materials as powder, metalizing wire, or bar are taken care of to light or firearm by which they are warmed to approach or fairly past their liquefying point. The subsequent liquid or almost liquid drops of substance are stimulated in a gas stream. In effect, the drops stream into meager lamellar particles clinging to the surface, covering and interlocking as they cement. The all-out coating thickness is typically delivered in numerous passes of the coating gadget.

thermal spray coating equipment where the coating is placed on the processed substrate by utilizing a stream of particles, metallic or nonmetallic, which even more or less forming platelets, called splats, with some of these splats forming the metalizing coating.

This technique for modern coating utilizes a warmth source to apply the material (ordinarily powder or wire) to a surface. The warmth source dissolves down to shape coating material into drops which will be sprayed onto the surface.

Thermal Spray Technology

Coating material beginnings as powder or wire structure. A wide scope of materials is accessible.

The thermal spray firearm contributes energy to the coating material particles and transports the coating to the substrate part. Energy can be thermal (heat) or active (speed). A few distinct advancements are accessible:

• HVOF
• Plasma Spray
• Fire Spray

The thermal spray weapon is constrained by a modern robot for explicit repeatable control of the coating. As the particles of liquid material affect the substrate, they breakdown into smoothed drops and in lamellar layers framing a firm coating structure. Cooling of the substrate is utilized to control the temperature gain of the substrate.

There are a few shifting sorts of Coating measures. The contrast by the way they apply thermal and active energy(K.E) to the source material, the state of the source material (powder or wire), and in this manner the general speeds and temperatures of the fire. Each cycle has preferences and burdens, and some are streamlined for particular kinds of coatings. Coatings can be applied to various thicknesses, contingent upon what they will be utilized for. The spray method is faster than numerous other coating application strategies.

There are several different processes used to apply a thermal spray coating-

• Wire Flame Spray- Wire flame spray process, the wire spray substance is dissolved in a gaseous oxygen-fuel flame. The combustible gas can be acetylene, propane, or hydrogen. The wire is fed concentrically within the flame, where it is dissolved and atomized by the addition of compressed air that also shows the melted substance towards the workpiece surface.
• Powder Flame Spray- The powder flame Spraycoating process is based on the same operating system as the wire flame spray process, with the exception that the coating substance is a spray powder. Thus, a larger variety of spray materials is available, as not all spray materials can be produced in wire form.
• Electric Arc Wire Spray- With electric arc wire spray, an arc is produced by contact of two otherwise charged metallic wires, usually of the same composition. This leads to melting at the tip of the wire element. Air atomizes the melted spray substance and stimulates it onto the substrate. The rate of spray is regulated by suitable regulation of the wire feed as it is dissolved, so a constant arc can be prepared.
• High-Velocity Oxy-Fuel Spray (HVOF)- The high-velocity oxy-fuel spray (HVOF) method is a comparatively recent addition to the group of thermal spray processes. As it uses a supersonic jet, setting it apart from the traditional flame spray, the speed of particle impact on the substrate is much more important, resulting in improved coating components. The mechanism differs from flame spraying by an extension of the jet at the exit of the gun. Fuel gases of propane, propylene, acetylene, hydrogen, and regular gas can be used, as great as liquid fuels such as kerosene.

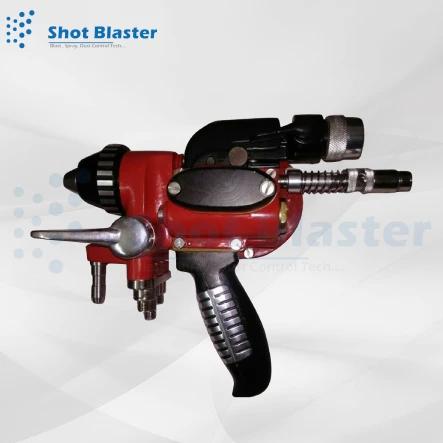

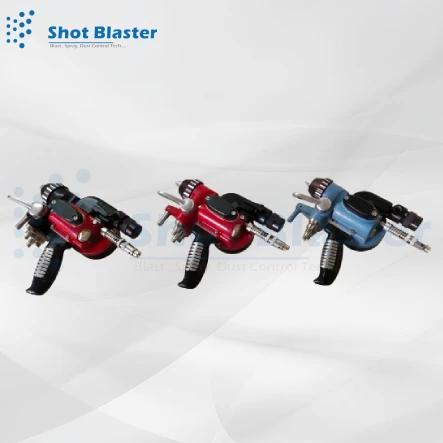

We are the leading metalizing gun manufacturer in India. We supply and export Metal Spray Gun, Wire Flame Spray Gun, and Powder Flame Spray Gun. Metalizing gun is low with the finest quality. Our Flame Spray & Metal Spray Gun Equipment is permanent and simple to use and low maintenance. We are the Largest Manufacturer of Zinc Spray Gun.

• Delivery Time- Minimum Time
• Port Of Dispatch- Thar Dry Port
• Production Capacity- 2-3 Per Month
• Packaging Details- Box
• Payment Terms- L/C (Letter of Credit)/T/T (Bank Transfer)
