Specifications
| Description |
ASB6060 |
ASB9182 |
ASB12090 |
| Working chamber(mm) |
(l)600x(w)600x(h)600 |
(l)900x(w)910x(h)900 |
(l)900x(w)1200x(h)900 |
| Door opening(mm) |
(w)500x(h)500 |
(w)730x(h)675 |
(w)800x(h)800 |
| Overall dimension (mm) |
(l)1500x(w)800x(h)1660 |
(l)1400x(w)1070x(h)2000 |
(l)1700x(w)1365x(h)2570 |
| Compressed air required(cfm) |
17 |
20 |
47 |
| Cleaning area (sq. mt/Hr) |
4-7 |
4-7 |
15-21 |
| Nozzle (mm) |
5/6 |
5/6 |
10 |

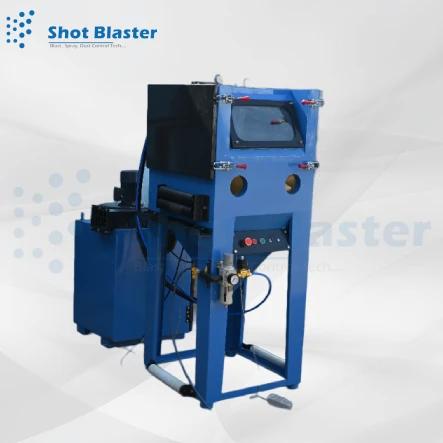

Suction Blasting Cabinet is based on the Injection Suction principle of blasting. The industrial sand blast cabinet secures non-stop working and no interruption in the blasting cycle. It is used for light and medium-size components/particles where the surface is to be cleaned or deburred or to provide a fine matte finish. It operates on the venturi principle to get abrasive from a non-pressurized storage sand blasting hopper to the blast gun where it is mixed with the compressed air stream and propelled against the work surface or blasting surface. Suction blast machines are most easily recognized by having two hoses i.e. for air and Abrasive media running to the blast gun.
When we are operating with a suction-blast gun, it is simple to recognize, because it has two pipes attached to it, one providing compressed air and one vacuum pipe (abrasive blasting hose) is bringing tools into the gun. Pressure-blast nozzles have simply one larger pipe to deliver a mixture of media particles and compressed air.
Suction blasting cabinet features are as follows:
- Suction sand blasting cabinets are of lower cost than comparable estimated pressure impacting cabinets.
- Suction blaster has far less moving parts and valves than a pressing factor rough impact unit, thusly, more simple support and investigating are conceivable there.
- Less air and rough utilization are there in suction grating shoot firearm as its air request is administered by the grating air stream, which is practically a large portion of the size equivalent to the impact spout breadth.
Suction Blasting Cabinet Standard Models are :
- Sand Blast Cabinet SSB-6060
- Sand Blast Cabinet SSB-9182
- Sand Blast Cabinet SSB-12090
