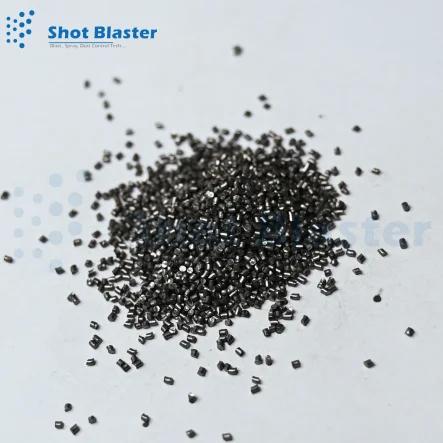

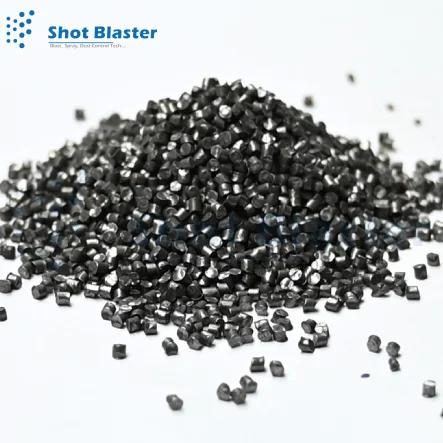

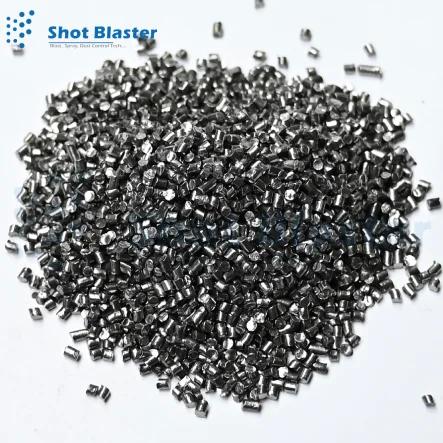

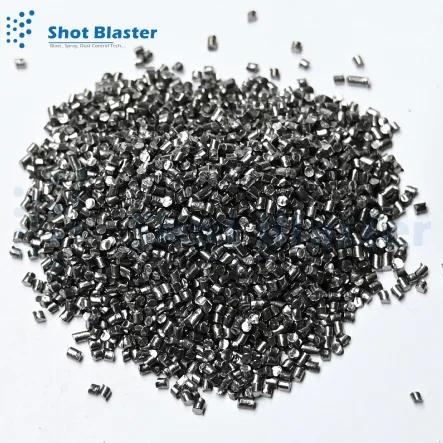

The Stainless Steel Cut Wire shots are utilized for cleaning and peening applications where ferrous contamination can’t be tolerated. It produces a very light surface, maintains its shape longer than cast abrasives and it produces a dust-free surface. Stainless steel cut wire shots are available in different sizes and mm. The standard sizes are 0.3 mm to 2.50 mm other sizes as per request. Because of their different sizes, they have different hardness 35 to 45 HRC. Grain shape is Cylindrical or round, Density is 7.8 g/cm³, Bulk density is 4.5 g/cm³. Stainless shots are used peeing in the job or workpiece through a sandblasting machine it's durability is a too-high or long-life abrasive material. Most important in the stainless steel is its density which was around 8 g/cm cube. In stainless steel, the shot peeing should be high quality to remove the paint rust loss and dust particles, etc.
The utilized case for using stainless cut wire shot in peening and Abrasive blast cleaning operations or working is sort of easy to form. Cut wire doesn't fracture or break down during use because it's a solid piece. As a result, you get these benefits:
Stainless steel cut wire shot highlights a significantly longer valuable life than cast steel shot or grit and carbon cut wire shot. They are a very important part of Shot Blasting Machine, as they are used in machines.
Dust production is significantly lower than portable blasting and wheel blasting operations. Stainless steel cut wire shot produces excellent results due to its uniformity and strength. It will make you a Greener organization because the disposal of spent media will be significantly reduced.
We also manufacture different kinds of top-quality abrasives at the most affordable prices.
Stainless steel sizes are available in SS series ss is stand for ( stand series) its start from SS- 170 to SS -660 and according to the mm size 0.4 mm t0 1.6 mm size.
Grade sizes are S-170,S-190,S-230, S-280,S-360,S-390,S-460,S-550,S-660. Then
Equivalent size in mm 0.4mm,0.5mm,0.6mm,0.7mm,0.8mm,0.9mm,1.0mm,1.2mm,1.4mm,1.6mm.
Stainless steel ranges in mm 0.3mm-0.5mm, 0.4mm-0.60mm,0.5mm-0.7mm,0.8mm-0.7mm-0.9mm,0.8mm-1.1mm,0.8mm-1.0mm,1.4mm,1.2mm-1.6mm,1.4mm-1.8mm.
|
SAE |
S-170 |
S-190 |
S-230 |
S-280 |
S-280 |
S-360 |
S-390 |
S-460 |
S-550 |
S-660 |
|
Equivalent Size in mm |
0.4 |
0.5 |
0.6 |
0.7 |
0.8 |
0.9 |
1 |
1.2 |
1.4 |
1.6 |
|
Cut Wire Shot range in mm |
0.3 -0.5 |
0.4 -0.60 |
0.5- 0.7 |
0.6-0.8 |
0.7-0.9 |
0.8-1.1 |
0.8- 1.2 |
1-1.4 |
1.2-1.6 |
1.4-1.8 |
The use of stainless steel is in surface finishing, grit removal, pre-treatment, shot peening, loose particles, paint removal, rust, dust blast cleaning, shot blasting, obtaining profile pattern, and etc.
