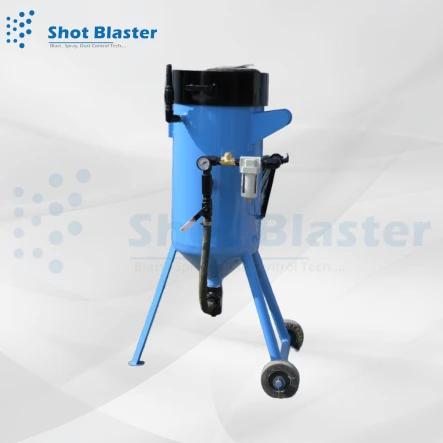

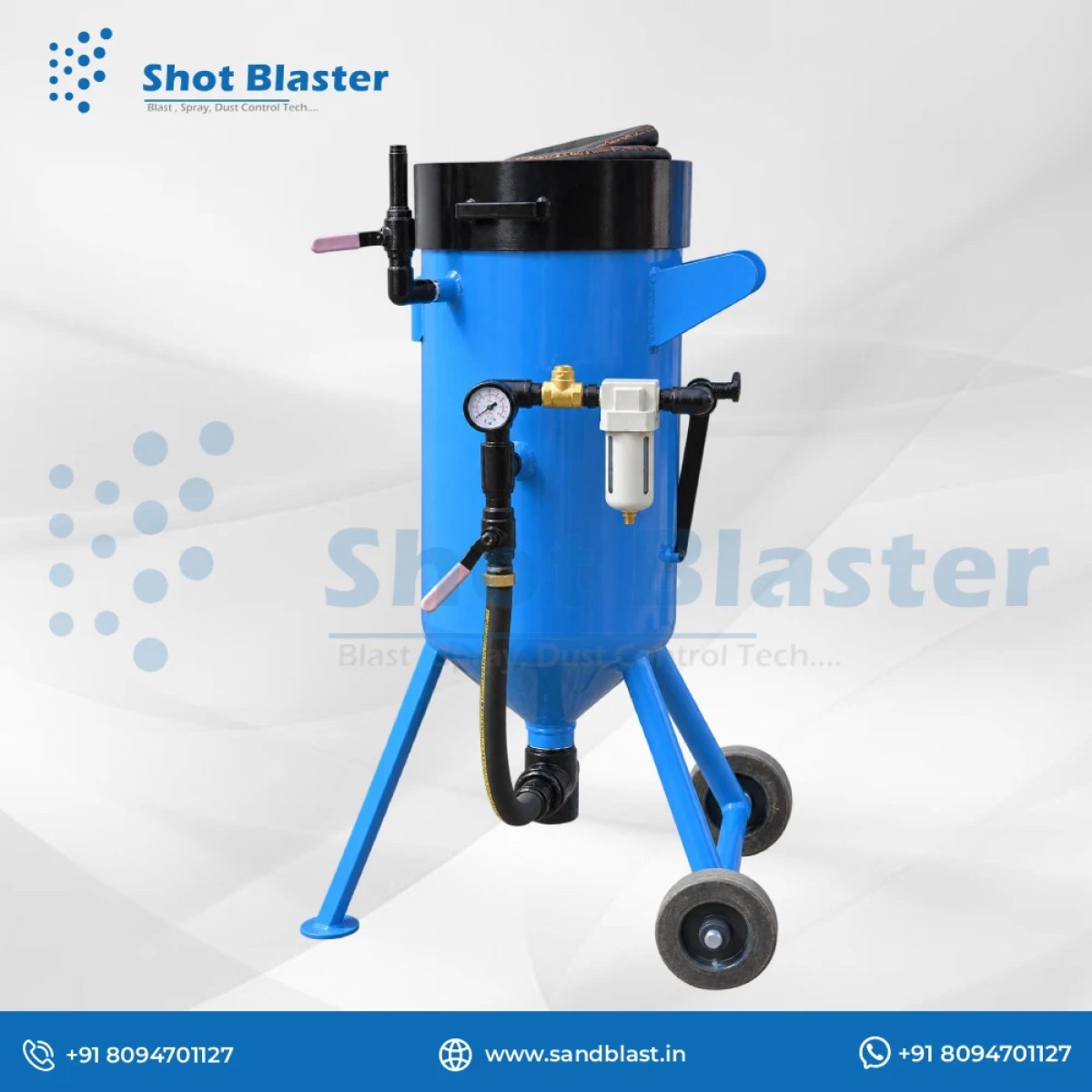

The Portable Grit Blasting Machine is utilized to bridle the abrasive characteristics of the material to clean segments. There are various sizes and styles that are accessible to make abrasive blasting. This is the best solution for organizations in fixing enterprises.
| Abrasive Tank Capacity (Metallic) | 150 kg |
| Abrasive Tank Capacity (Sand) | 65 Kg |
| Volume | 42 Ltr |
| AStd. Blasting Hose Length | 5 Mtr |
| Blasting Hose I.D. | 19 mm |
| Gritblaster Nozzle Orifice | 5-6 mm |
| Height | 1111 mm |
| Diameter | 261 mm |
| Weight | 95 Kg |
| Air Filter & Pressure Gauge fitted | 1 |
| Automatic Exhaust Valve fitted | 1 |
| Abrasive Control through Pinch Valve fitted | 1 |
| Approx. Cleaning Rate [Only for reference] | 4-7 Sq Mtr/Hr |
| Compressed air required at 80 psi. | 60 CFM |
| Recommended Abrasive Size | 25 to 80 Mesh |

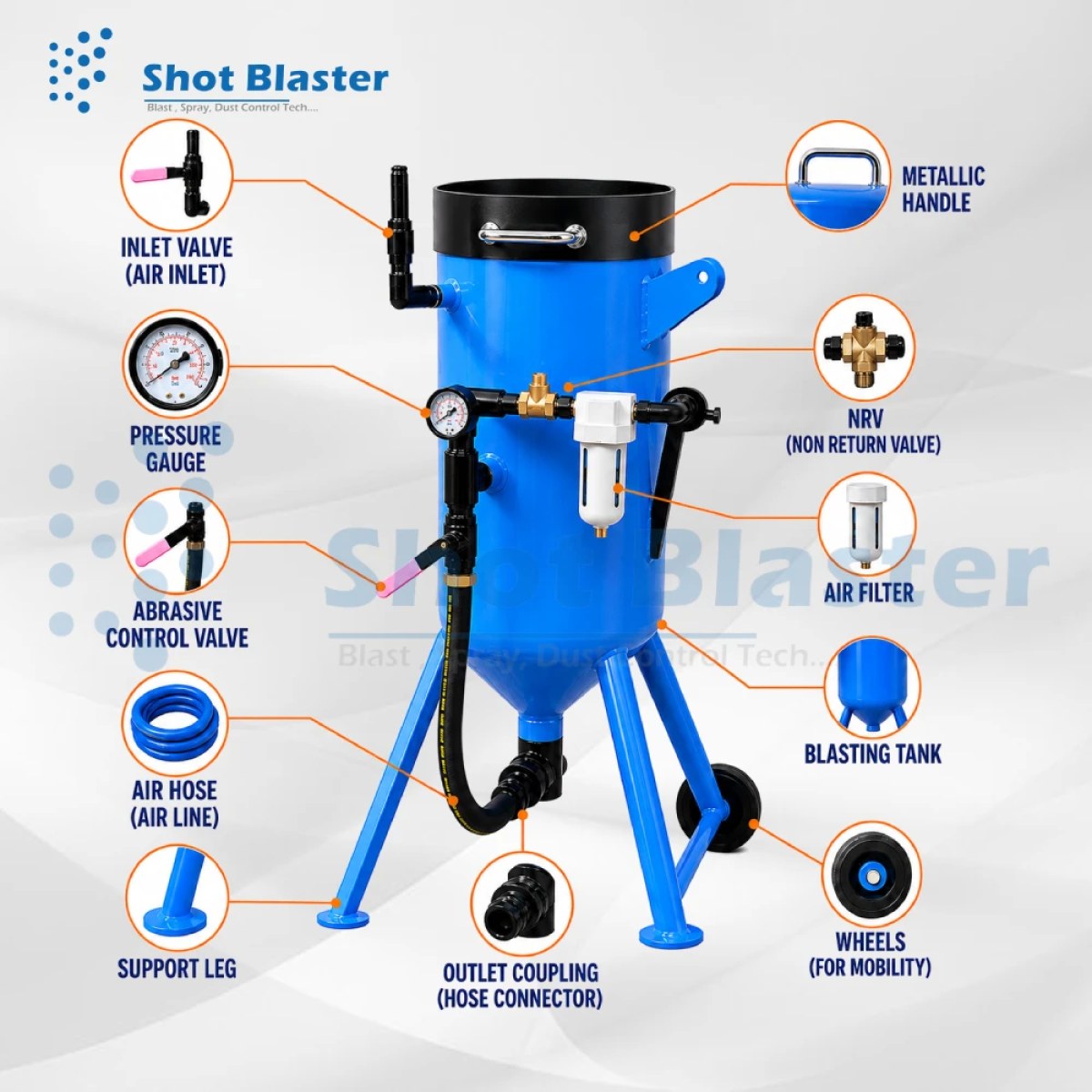

Portable grit Blasting machines P7 150 is typically powered by a grit blasting compressor and the mini grit blasting machine is named so because of its small-sized pot. The grit blasting compressor provides a large volume of high-pressure air to grit blasting equipment. Portable grit blasting Equipment is pressurized, tank filled with grit blasting grit, and used to allow an adjustable amount of grit blasting grit into the main blasting line.
Fully equipped mini portable grit blasters are often found mounted on wheels, offering high mobility and easy transport from site to site. It is also known as portable grit blasting types of equipment. Sand Blasting Nozzleis at the starting of blasting hose on Portable Grit Blaster.
Air compressor + selected abrasive garnet + Portable grit Blasting machine P7 150+ appropriate & blasting nozzle + on/off control + blast surface = high-speed erosion (removal of dust particles from the blast surface.)
Grit Blasting Machine is used to dispose of new particles from the metal surface. Grit Blasting Machine has an atom size sand measure, in any case, called Sand Blasting Machine. It is a cycle where abrasives are showered out at a high squeezing factor through grit blasting spout using compacted air on a shallow level which ought to be re-planned and give an appealing surface fulfillment. Grit sway machines can in like manner improve the outside of parts by taking out scratches, anticipating, and shape marks. The movement of the Grit Blasting Machine depends upon the different applications, for instance,
A grit blasting machine involves two hoses, one of which is related to the lower part of the handle, and another is related to the lower side of the barrel. it has a document of free sand which helps in outlining a vessel or can. Right, when the gun is fired, the air makes attractions that move the sand into the weapon and this sand can be reused.
We are the best Grit Blasting Machine manufacturer in India with successful help and answer for some assembling enterprises dependent on their requests. We are the main manufacturer and exporter of Sand blasting machine, Shot blasting machine, Grit blasting Machine, Sand Blasting Cabinet, Shot Blasting Room, Pressure Blasting Cabinet, and various abrasives. We work as per the customer and spotlights on customer fulfillment.
