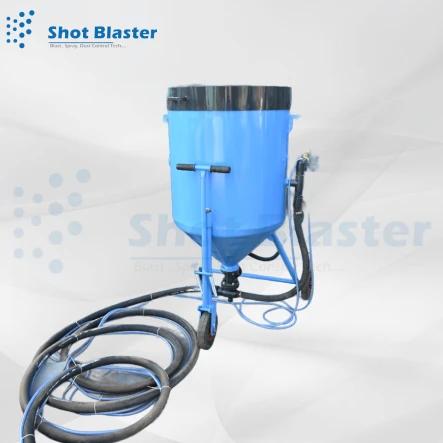

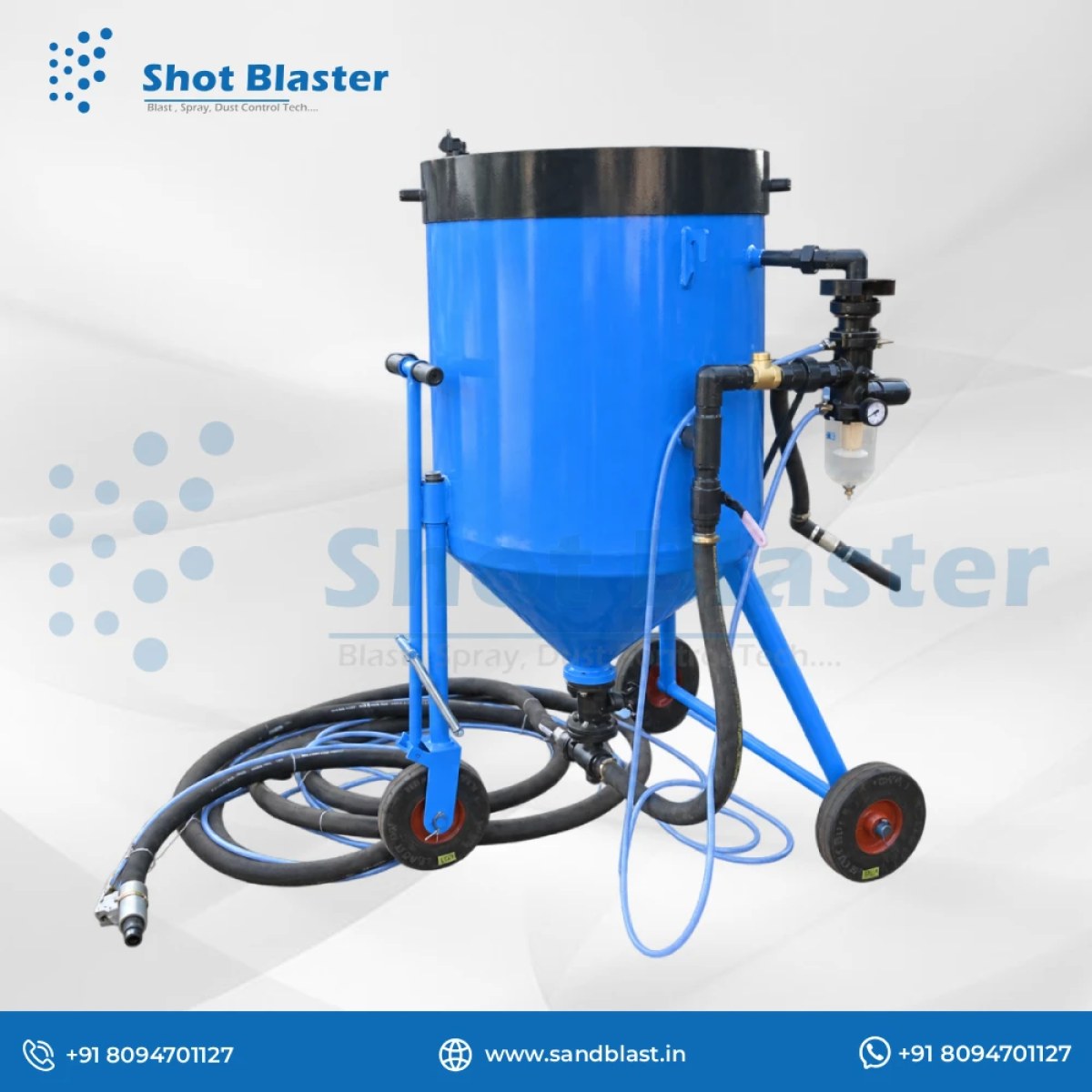

In this large Portable grit blast machine P7 1000 & 1000 R, the machine cleaning rate is high as compared to other portable grit blast machines. Portable grit blaster grit blasting pot capacity is also high. As compared with others we require to fill 4-5 times less of the blasting pot. There are wheels in this which help in easy movement. There is a vibrating sieve established at the top of the blast pot from where we would fill the sand. In this there is no remote controller, therefore, the operator needs to control the machine manually by ON/OFF the knob. Even there is big blasting holes diameter. Even it is more reasonable in comparison with remote control portable air grit blast or sand blasting machine & Shot Blasting Machine.
Specification of Portable Grit Blaster Machine P7 1000 & 1000 R
| Abrasive Tank Capacity (Metallic) |
1000 kg |
| Abrasive Tank Capacity (Sand) |
460 Kg |
| Volume |
284 Ltr |
| Gritblaster Hose Length |
10 Mtr |
| Gritblaster Hose I.D. |
32 mm |
| Gritblaster Nozzle Orifice (Tungsten Carbide) |
8/10 mm |

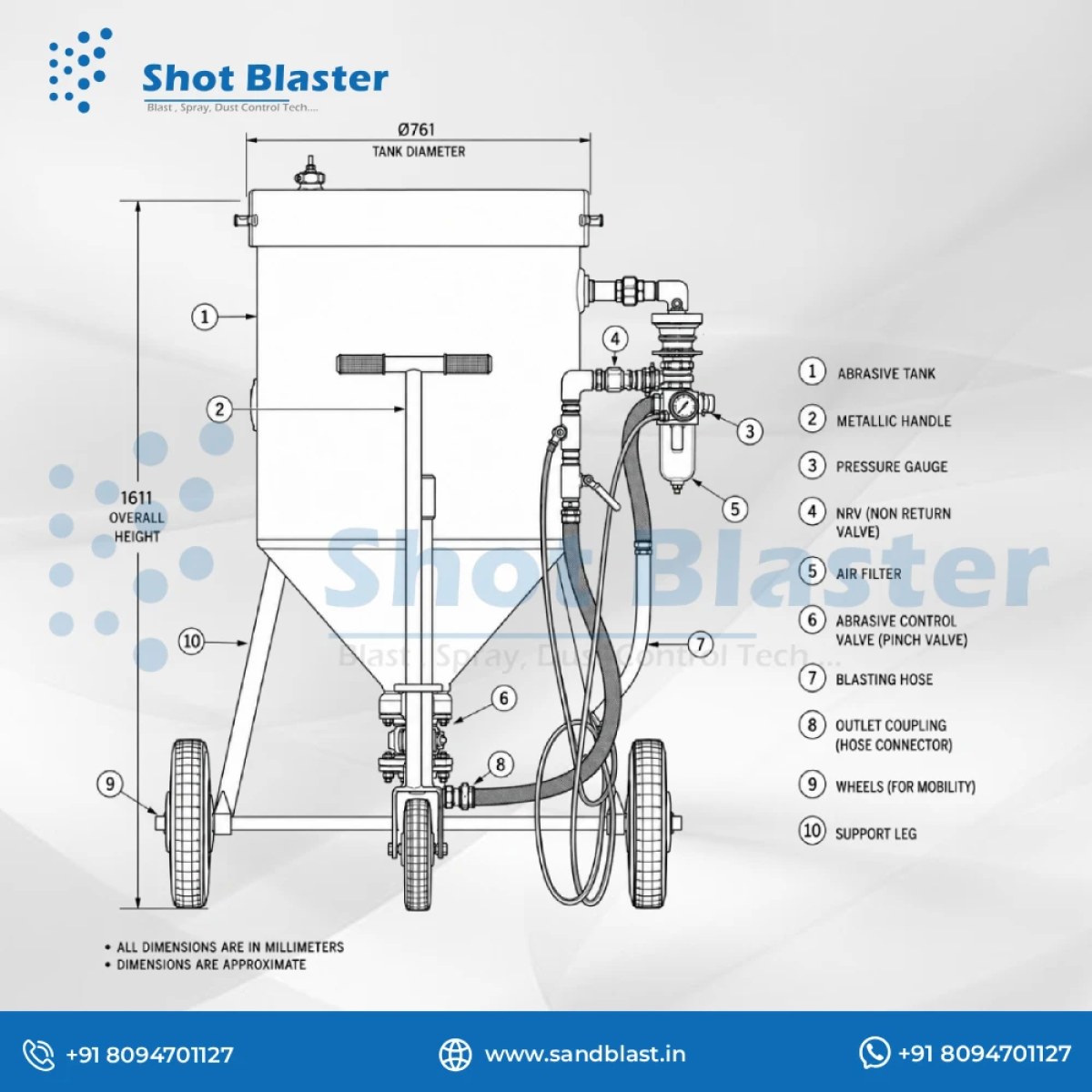

DIMENSION
| Height |
1611 mm |
| Diameter |
761 mm |
| Weight |
246 kg |
| Air Filter & Pressure Gauge fitted |
1 |
| Abrasive Control through Pinch Valve fitted |
1 |
| Approx. Cleaning Rate [Only for guidance] |
15-21 sq Mtr/Hr |
| Compressed air required at 80 psi. |
217 cfm |
| Recommended Abrasive Size |
16-80 Mesh |
Working of Portable Grit Blasting Machine P7 1000
Grit Blasting Machine is used to dispose of new particles from the metal surface. Grit Blasting Machine has an atom size sand measure, in any case, called Sand Blasting Machine. It is a cycle where abrasives are showered out at a high squeezing factor through grit blasting spout using compacted air on a shallow level which ought to be re-planned and give an appealing surface fulfillment. Grit sway machines can in like manner improve the outside of parts by taking out scratches, anticipating, and shape marks. The movement of the Grit Blasting Machine depends upon the different applications, for instance,
- Stacking of abrasives into the chamber.
- Tossing compressed air through the nozzle on a superficial level.
A grit blasting machine involves two hoses, one of which is related to the lower part of the handle, and another is related to the lower side of the barrel. it has a document of free sand which helps in outlining a vessel or can. Right, when the gun is fired, the air makes attractions that move the sand into the weapon and this sand can be reused.
