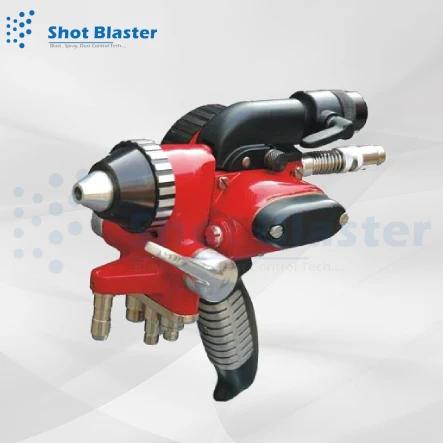

Metalizing Gun

Metalizing Gun

In metalizing gun, metalized coatings are utilized to fix worn parts, rescue confused segments, or give unique properties to the outside of unique gear. Metalizing gun is utilized for improving bearing strength, adding erosion or warmth opposition, hard-confronting, expanding lubricity, improving warm and electrical conductivity, and delivering beautifying coatings.

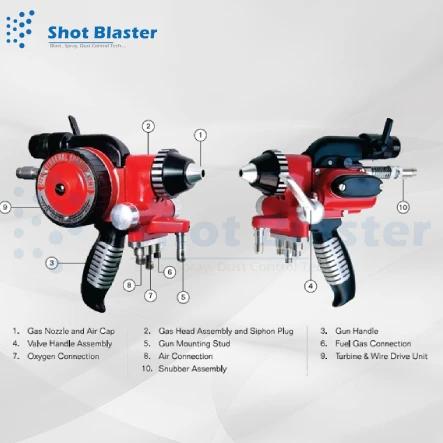

In metalizing gun gear, it uses a flame spray gun in which a couple of metal wires are united at a convergence point. Every one of the metal wires is independently accused of an electrical flow. At the convergence purpose of the two wires, an electric arc is made. The electric arc is of adequate energy to dissolve the wires. A fly or stream of compacted gas, generally air, is centered around the convergence point. The air atomizes the liquid metal into particles and impels them in a spray stream onto a substrate. The independently charged wires are ceaselessly determined forward and the electrical arc is kept up at the convergence point as the finishes of the wires are persistently burned-through in the energy of the arc. A covering is shaped on the substrate as the metalized particles affect and disseminate over the substrate. Perhaps the most well-known utilizations for spray metalizing innovation is for covering hardware and constructions to restrain erosion. The design, hardware, or other substrate is regularly sandblasted before applying the metalizing covering. The sand blasting eliminates old covering materials and consumption from the substrate. The sand blasting machine additionally makes considerable residue, coarseness, and other airborne particles in the ecological territory where the spray metalizing contraption is being used. An over-spray impact from the spray stream of liquid metal particles is likewise present, because of the spraying parts of the metalizing method. The residue, coarseness, and other airborne particles have made specific issues in accomplishing the ideal utilization of certain sorts of earlier electric arc spray gun metalizing gear.

Metalizing Gun Specifications

Air Consumption 70-100 psi
Nozzle Size 3.15 mm
Form Wire
Air Pressure 8-9 cfm
Air Inlet 3/8"
Sound Pressure 115 dB



Characteristics of Metalizing Gun

  • Arc-sprayed metal coatings are not homogeneous. The previously liquid drops from the metalizing gun hit the substrate and level out. The resulting particles overlay the primary store, developing a permeable lamellar covering. Holding is basically mechanical, albeit some metallurgical holding likewise may happen.
  • The little pores between drops before long got shut as the covering thickness increments. These minute spores can hold ointments and are one reason metalized coatings are utilized for expanded lubricity on wear surfaces.
  • The rigid qualities of sprayed coatings are high for the generally low dissolving point metals utilized. Pliability is consistently low. Hence, parts should be formal first and afterward sprayed. Dainty coatings of low softening point metals, for example, sprayed zinc on steel, are a minor exemption for this standard and can withstand restricted shaping.

Metalizing Gun Surface Preparation

  • Surfaces for a metalizing gun should be perfect. They additionally require roughening to guarantee a decent mechanical connection between the workpiece and covering. Oil, oil, and different impurities are rearmed with any appropriate dissolvable. Cast iron or other permeable metals ought to be preheated at 500 to 800° F (260 to 427° C) to eliminate ensnared oil or other unfamiliar issues. Synthetic cleaning might be important before preheating.
  • Undermining frequently is fundamental on shafts and comparative surfaces to allow a consistently thick development on the completed part. The profundity of undermining relies upon the breadth of the shaft and on assistance necessities. In the event that the undercut surface gets oxidized or polluted, it ought to be cleaned prior to roughening and spraying.
  • Roughening of the workpiece surface normally is the last advance prior to spraying. Different strategies are utilized, going from harsh stringing or stringing and knurling to grating blasting and electric holding.
  • Dainty molybdenum or nickel aluminide spray coatings are frequently applied to the roughened surface to improve the bond strength of the resulting coatings. Applications that require just a slender covering of sprayed metal regularly dispose of the roughening step and go straightforwardly to a holding coat. The surface is then developed with some other metal.

Industrial Uses

  • Automobile Industry.
  • Aroma Industry.
  • Glass Industry.

Metalizing Gun Manufacturer in India

We are the leading metalizing gun manufacturer in India. We supply and export Metal Spray Gun, Wire Flame Spray Gun, and Powder Flame Spray Gun. Metalizing gun is low with the finest quality. Our Flame Spray & Metal Spray Gun Equipment is permanent and simple to use and low maintenance. We are the Largest Manufacturer of Zinc Spray Gun.

  • Delivery Time- Minimum Time
  • Port Of Dispatch- Thar Dry Port
  • Production Capacity- 2-3 Per Month
  • Packaging Details- Box
  • Payment Terms- L/C (Letter of Credit)/T/T (Bank Transfer)
